PSA or mechanical Polymide Film Kapton Heater 24V 60W with UL approved
Description for Kapton Heater 24V
Kapton Heaters 24V are available in a variety of shapes, sizes, and wattages. Polyimide Film offers a high degree of resistance to chemicals, and has excellent outgasing properties in high vacuum environments.
Polyimide is an organic polymer with very high dielectric capability and thin profile, while providing superior resistance to most solvents, oils, and radiation. In connection with these features, kapton heater is very ideal for applications with space and weight limitation, or where the heater will be exposed to chemical or oil.
Polymide Film Heater also allows easy visual inspection on the internal structures. Pressure-sensitive adhesive (PSA) backing surface is standard, but special adhesives or mounting holes can be customized as customer requirement.
Specifications for Kapton Heater 24V
| Mounting | PSA or mechanical |
| Watt density | 1.1-6.5w/cm2 |
| Voltage range | 1.5v~400v |
| Power density range | 0.03w/cm2~2.5w/cm2(0.19w/inch2~16.13w/inch2) |
| Using temperature range | -60~200°C(-140~392°F) |
| Width range | 10mm~500mm(0.39"~19.68") |
| Length range | 10mm~1800mm(0.39"~70.86") |
| Thickness range | Standard:0.126~0.266mm(0.005"~0.01") |
| Plug | Chinese,British, American, European and so on |
| Exit | teflon, kapton or silicone insulated leads |
| Life | more than 4 years(normal use) |
| MOQ | 10pcs |

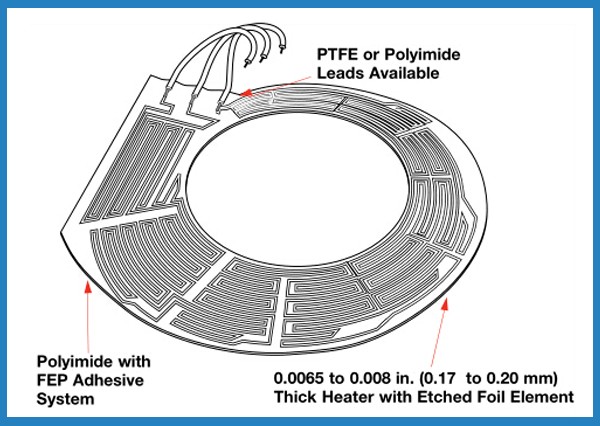

Structure for Kapton Heater 24V
Applications for Kapton Heater 24V
- Medical diagnostic instruments: Heat sample trays, reagent bottles, etc.
- Stabilize optoelectronic components
- Test or simulate integrated circuits
- Enable cold weather operation of outdoor electronics such as laptop, ATM, LCD’s
- Protect aircraft electronic and mechanical devices in cold weather / area.
